zencontrol
DALI Broadcast 30 Mech Rotary Plug and Play Field Kit
$166.26 ex-GST
26 units on hand
(additional stock available at secondary warehouse)
Order code: lr-dali-kit
Combine the simplicity and ease of use of a simple rotary dimming system, with the advantages of a DALI control system.

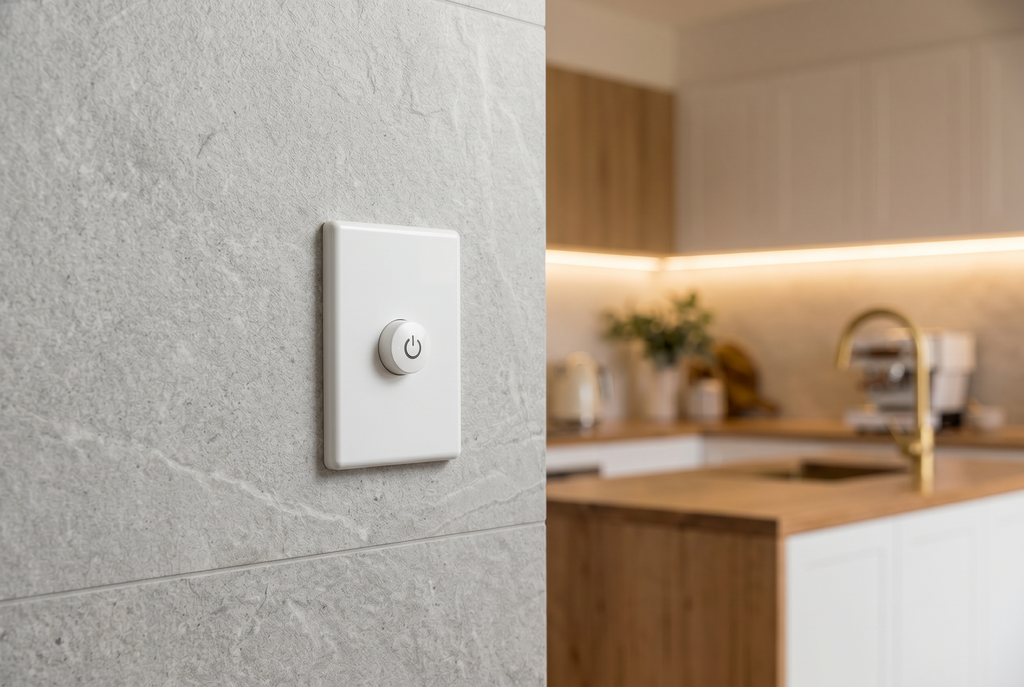

The simple and intuitive zencontrol rotary gives you control. Rotate to dim up and down, alternative press the knob to turn the lights on and off.
With the broadcast kit, no programming is required to control DALI lights. Simply wire up the kit and start controlling DALI lights with zero commissioning.

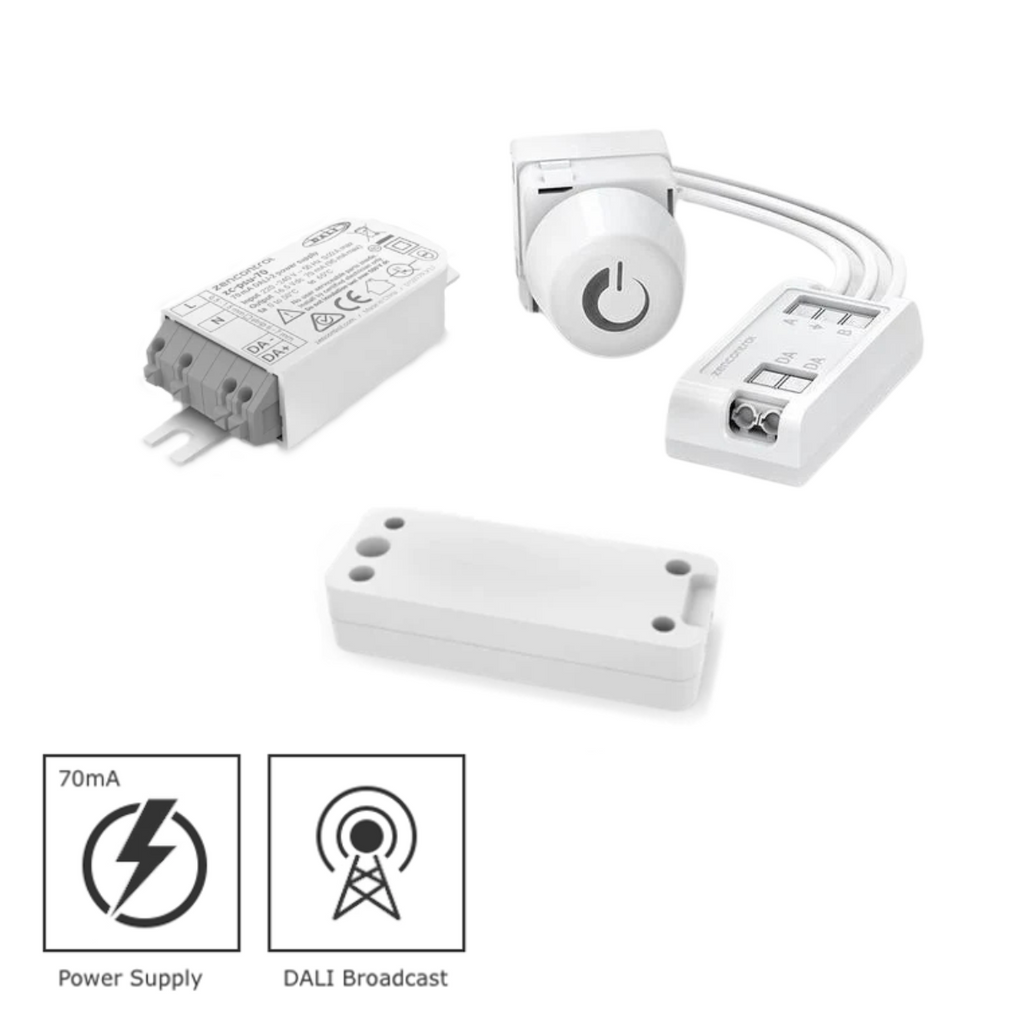

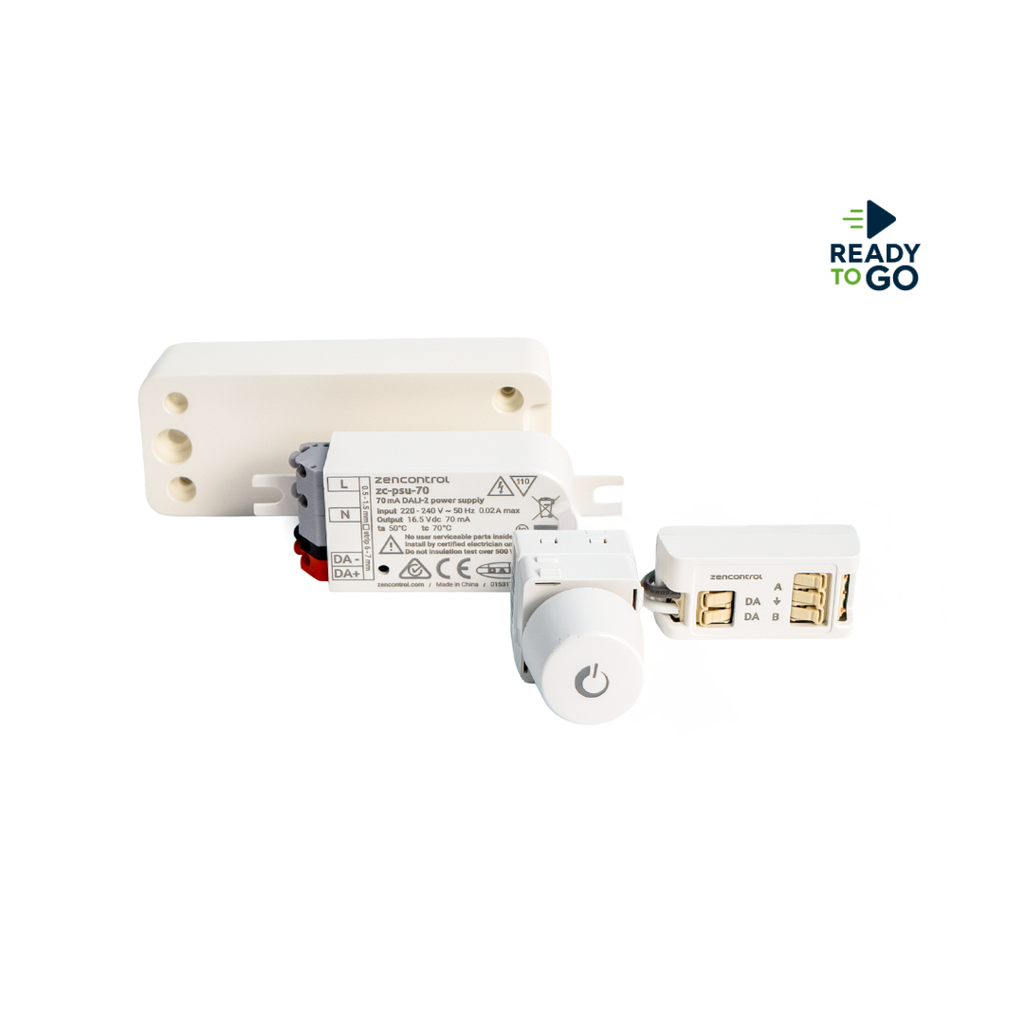

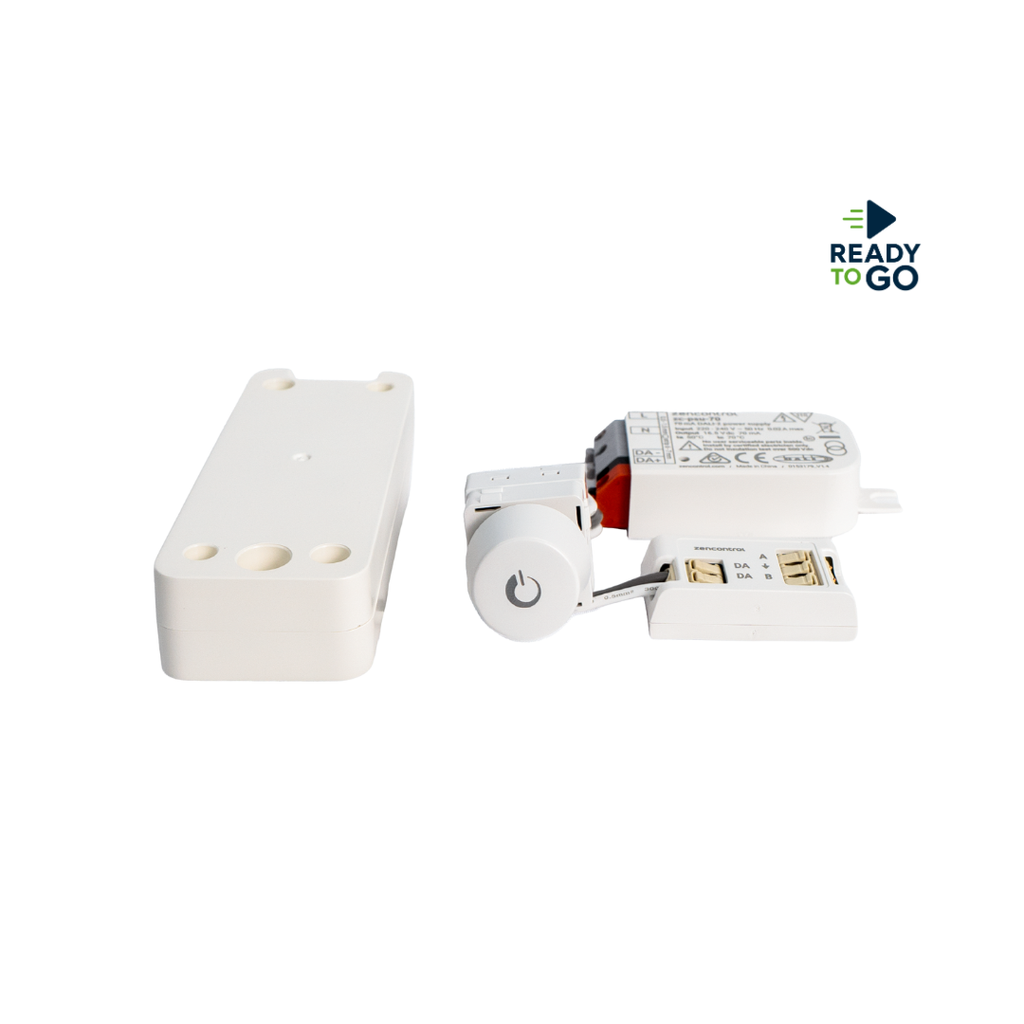

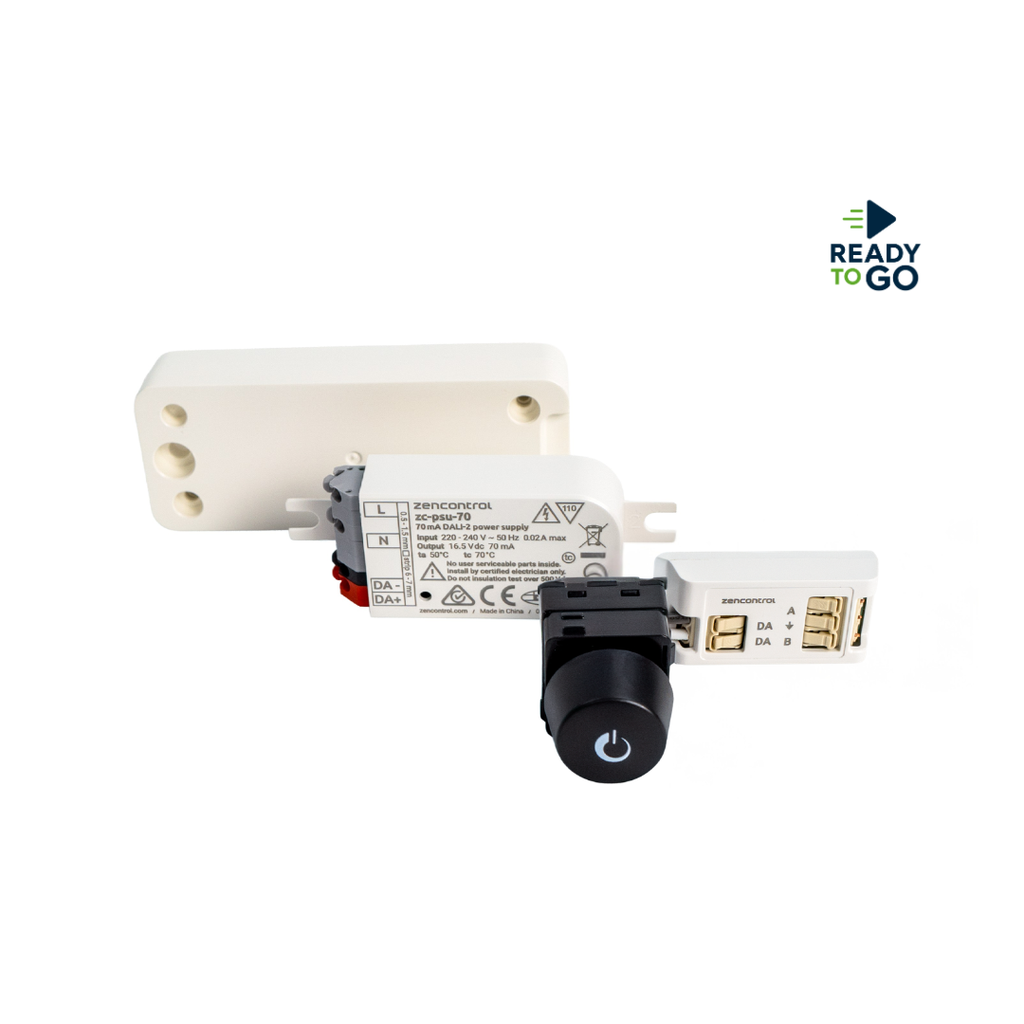

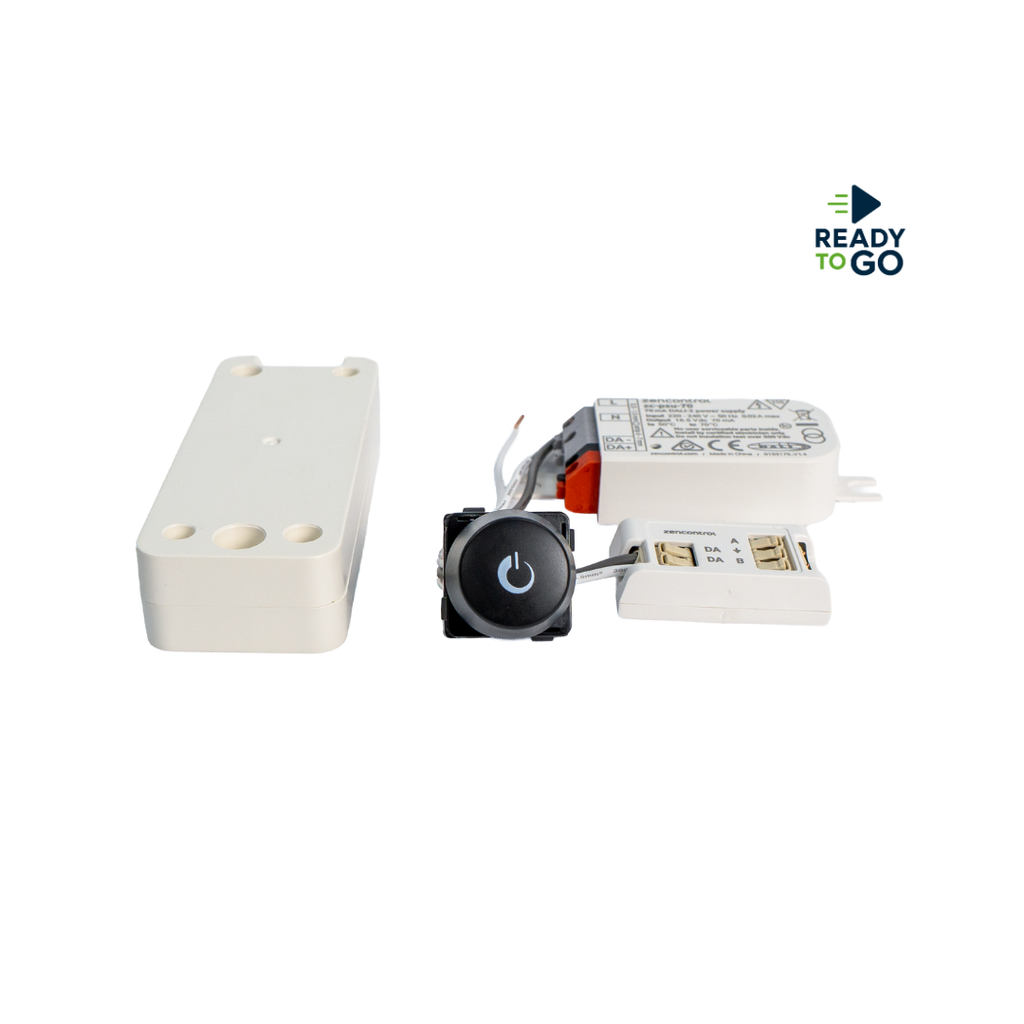

This kit includes a rotary DALI dimmer set to broadcast, a stand alone 70mA DALI power supply, and a field mount casing for 240V safe in-wall installation.
| Also available with push button: DALI Broadcast 30 Mech Push Button Switch Plug and Play Field Kit |
 |
See downloadable Datasheet for the wiring diagram.
Features
- Rotary and pushbutton interface
- Compatible with standard switch-plates
- Everything required for a safe, compliant, out of the box DALI broadcast control system
- No DALI addressing or programming required
- Rotate knob to dim up or down, press to turn on and off
- Includes 70 mA DALI-2 Power supply
- Includes a poly carb field mounting kit for 240V safety
These parts can be used with a DALI control system
Specifications
| Supply | 70mA DALI PS Included, IEC 62386-101, Ed. 2.0 |
|---|---|
| Control system |
Stand Alone DALI Broadcast Combine up to four kits together for multiple Rotary two / three or four way switching. |
| Wiring | 0.5 – 0.75 mm2 Strip 6 – 7 mm (supplied with 100 mm flylead) |
| Operating temperature | 0 to 45°C |
| Material | PC |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11 CISPR 15 IEC 62386-301 EMC-2004/108/EC LVD-2006/95/EC |
| Field Mount Kit Size | W94 x H19 x D37 mm |
Dimensions:
All dimensions in millimeters unless otherwise specified:
