DALI Broadcast 30 Mech Push Button Switch Plug and Play Field Kit
$166.26 ex-GST
26 units on hand
(additional stock available at secondary warehouse)
Order code: lr-dali-kit-switch

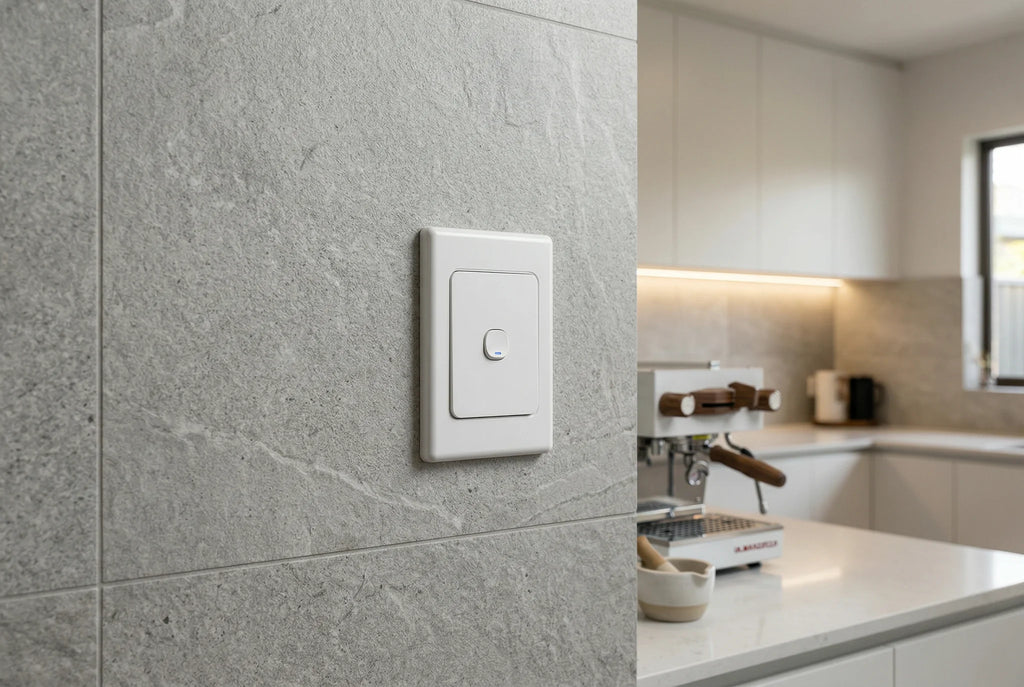

Combine the simplicity and ease of use of a traditional light switch with the advanced functionality of a DALI control system.
The intuitive zencontrol push-button switch puts control at your fingertips—hold to dim or press to turn the lights on and off.
With the broadcast kit, no programming is needed to control DALI lights. Simply wire the kit, and you’re ready to manage DALI lights with zero commissioning required.

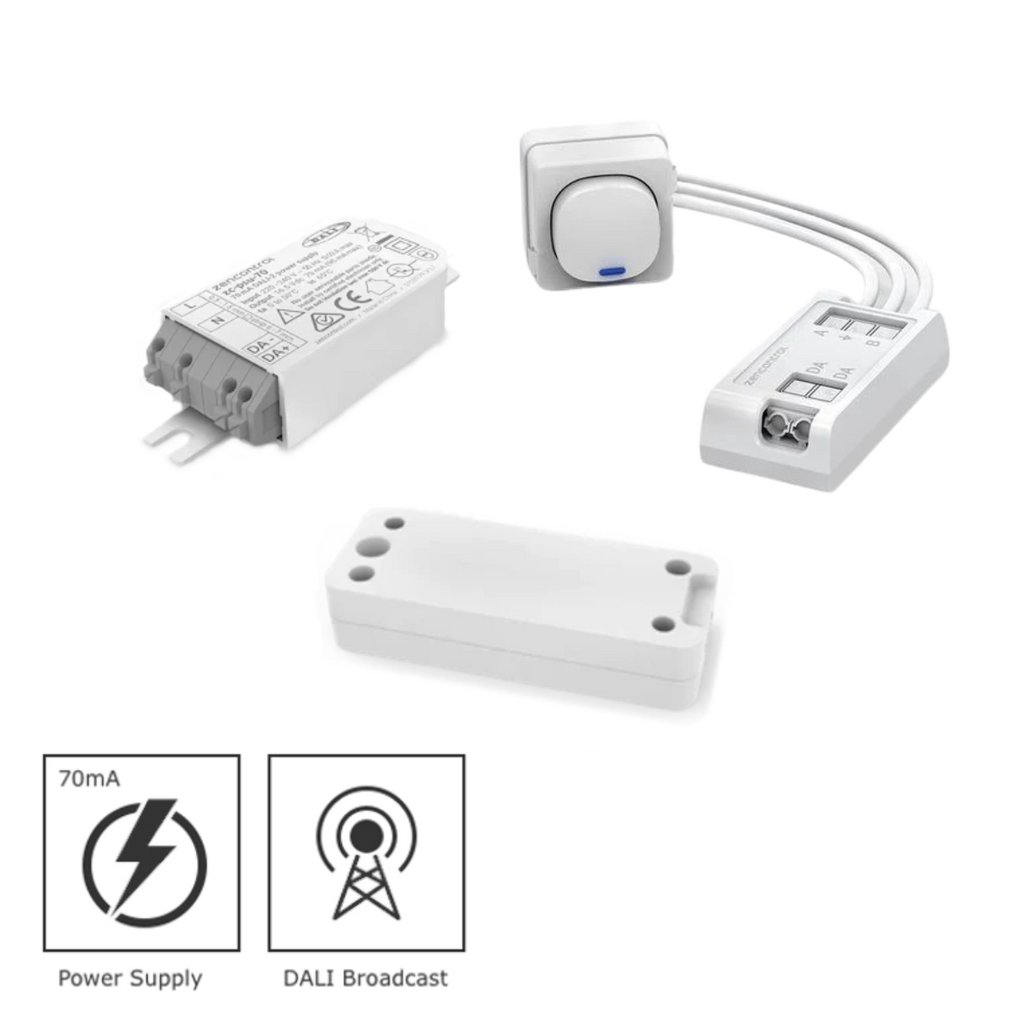

The kit includes:
- A DALI-illuminated push-button switch set to broadcast,
- A standalone 70mA DALI power supply, and
- A field-mount casing for 240V-safe in-wall installation.
| Also available with rotary dimmer: |
 |
See downloadable Datasheet for the wiring diagram.
Features
- Illuminated pushbutton interface
- Compatible with standard switch-plates
- Everything required for a safe, compliant, out of the box DALI broadcast control system
- No DALI addressing or programming required
- Press the switch for on/off, press and hold for dimming brightness
- Includes 70 mA DALI-2 Power supply
- Includes a poly carb field mounting kit for 240V safety
These parts can be used with a DALI control system
Specifications
| Supply | 70mA DALI PS Included, IEC 62386-101, Ed. 2.0 |
|---|---|
| Control system |
Stand Alone DALI Broadcast Combine up to four kits together for multiple Rotary two / three or four way switching. |
| Wiring | 0.5 – 0.75 mm2 Strip 6 – 7 mm (supplied with 100 mm flylead) |
| Operating temperature | 0 to 45°C |
| Material | PC |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11 CISPR 15 IEC 62386-301 EMC-2004/108/EC LVD-2006/95/EC |
| Field Mount Kit Size | W94 x H19 x D37 mm |
Dimensions:
All dimensions in millimeters unless otherwise specified:
