zencontrol

DALI-2 Microwave Smart Sensor 8m with in built relay and 2 switch inputs

Request Pricing Access
Order code: zc-mw-da-2sw-r
Sign up to Purchase

Watch in Lumenation Bronze Course

Working With ECD's

Features
  • Microwave motion sensor
  • Light level measurement
  • Programmable via IR remote
  • IP65 weatherproof rating with mounting accessory
  • Fully compatible with other DALI-2 application controllers
  • Broadcast control of DALI devices with inbuilt application controller
  • Built-in Relay 10A (Capacitive, Inductive, Resistive)
  • 2 switch inputs (Momentary or Absolute)
Programmable features (IR)
  • Sensor time-out
  • Lux level, dusk (if under lux level, activate sensor)
  • Lux level, disable (if over lux level, disable sensor)

Specifications
Supply 220 – 240 V ~50 Hz
DALI line current < 2 mA
Sensors Microwave, IR, lux
Microwave 5.8 GHz, 0.2mW
Wiring 2.5 mm2 cable (no earth, suits round and tps)
Operating temperature 0 to 55°C
Material PC (body)
Ingress protection IP54 (front-face only)
IP65 (with surface or wall mount kit)
Mounting

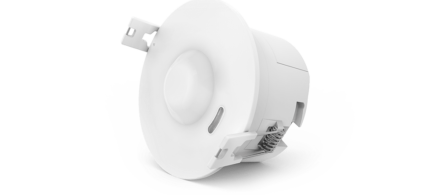

(kits sold separately) 		Recessed (cut-out min Ø83 mm)

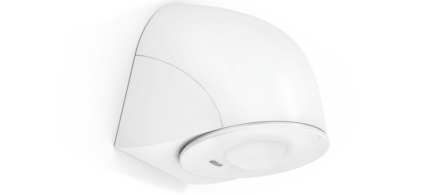

Wall mount kit (mounting centres 85 mm)

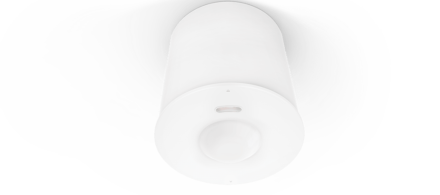

Surface mount kit

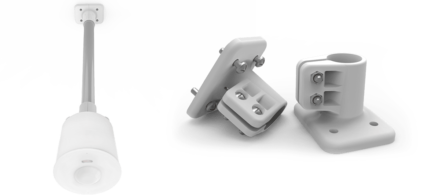

Rod mount kit

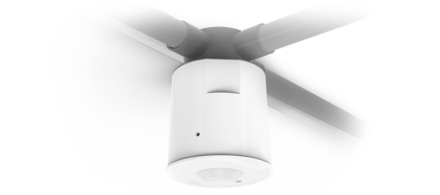

Conduit mount kit (mounting centres 50 – 60 mm)
Compliance standards

IEC 61347-2-11
IEC 60669-2-1
CISPR 15
EN 55015

IEC 62386-208

IEC 62386-301

IEC 62386-302

IEC 62386-303

IEC 62386-304

Detection pattern
Range 8m (mounted at 2.7 m)
Mounting height 2 – 12 m
