240V Standalone Microwave Smart Sensor 8m with inbuilt relay and 1 switch
Order code: zc-mw-st-1sw-r
Features |
|
Programmable features (IR)
|
Programmable features (switch)
|
Specifications |
|
| Supply | 220 – 240 V ~50 Hz |
|---|---|
| Supply current | < 0.1 A |
| Relay output |
120 A / 20 ms inrush current 10 A inductive 6 A resistive |
| Sensors | Microwave, IR, lux |
| Microwave | 5.8 GHz, 0.2mW |
| IR | 38 kHz |
| Wiring | 2.5 mm2 cable (no earth, suits round and tps) |
| Operating temperature | 0 to 55°C |
| Material | PC (body) |
| Ingress protection | IP54 (front-face only) IP65 (with surface or wall mount kit) |
| Mounting (kits sold separately) |

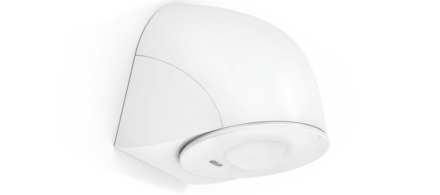

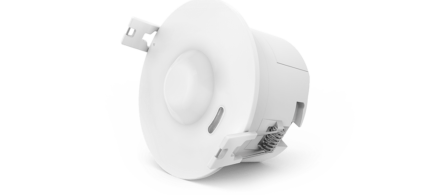

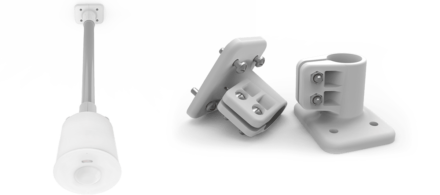

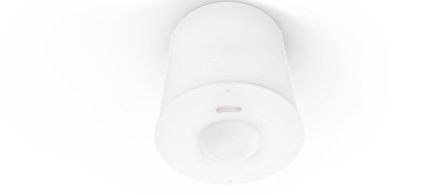

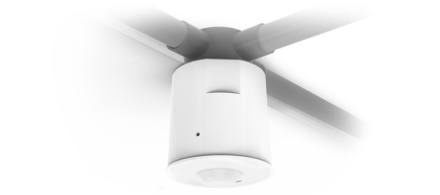

Recessed (cut-out min Ø83 mm) Wall mount kit (mounting centres 85 mm) Surface mount kit Rod mount kit Conduit mount kit (mounting centres 50 – 60 mm) |
| Compliance standards | IEC 61347-2-11 IEC 60669-2-1 CISPR 15 EN 55015 |
Detection pattern |
||
| Range | 8 m (mounted at 2.7 m) | |
|---|---|---|
| Mounting height | 2 – 12 m | |
