Convert a Clipsal 30/40 slave mech into a DALI-2 switch with this adapter.

Compatible with 5031NMS and 5041NMS slave mech switches.

Note: Clipsal 30/40 slave mech not included.

The DALI-2 Switch Adapter (zc-switch-c) is a versatile device that supports 1 button with an orange or blue indicator LED for seamless integration with DALI-2 lighting systems. Designed for easy installation and high reliability, this switch adapter offers efficient control, low power consumption, and ensures compliance with DALI-2 standards. Suitable for commercial and residential lighting setups.

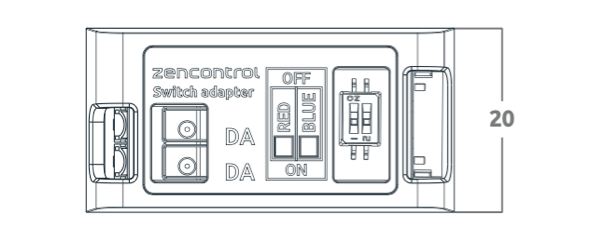

Specification

Key Features:

• Supports one button control with an LED indicator.
• Choice of LED indicator Colour (Orange or Blue)
• Low power consumption, designed for use in DALI-2 systems.
• Easy installation behind wall plates or mounting enclosures.
• Ensures compliance with DALI-2 standards for smooth operation.

Safety Information:

• Must be installed by a licensed electrician.
• Before installation, turn off and isolate the electrical supply.
• No user-serviceable parts. Attempting to service will void the warranty.
• Must not be connected to any mains voltage; it is powered directly from the DALI line.
• DALI-2 is not SELV and should be treated as LV. Adhere to all safety codes.
• Outputs must be treated as LV.

Installation Instructions:

1. Inspect the product for damage. If damaged, return to the place of purchase.
2. Follow safety warnings before installation.
3. Connect the DALI terminals to the DALI line (DALI is not polarized).
4. Adapt the switch to the 5-pin output terminal.
5. Mount the switch behind the wall plate or momentary switch enclosure (default configuration is A/B input, depending on the DALI-2 application controller).

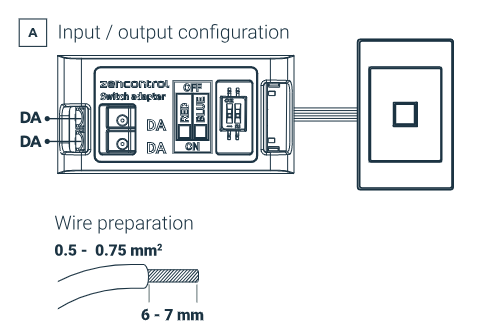

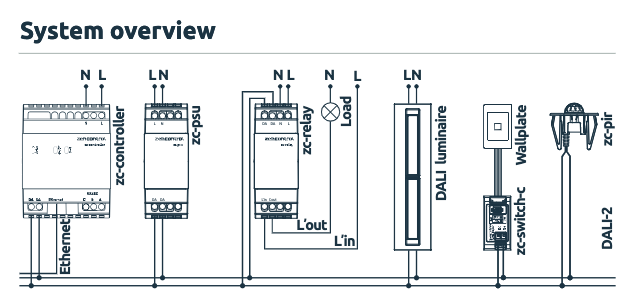

Wiring Diagram:

Notice:

• Default configuration is A/B input.
• Configuration dependent on the DALI-2 application controller.
