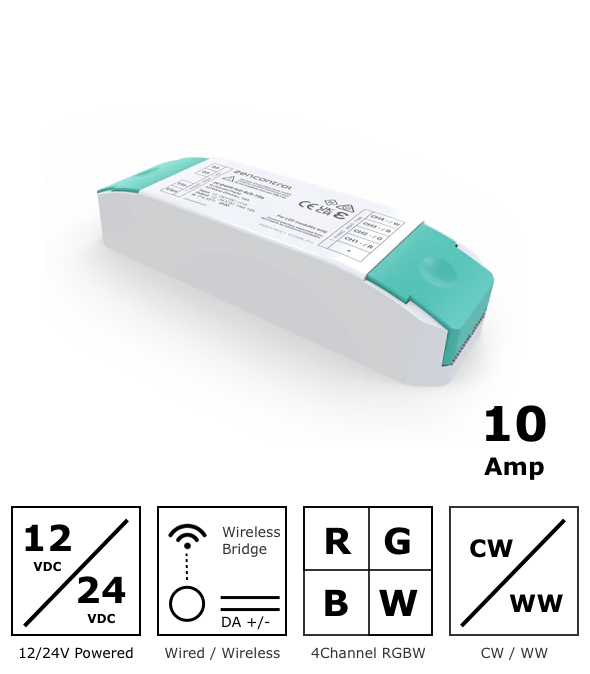

Smart PWM Field Dimmer 10A 4 Channel Wired and Wireless

Request Pricing Access
Order code: zc-pwm-iot-4ch-10a
Sign up to Purchase

Designed to support 12 - 24V DC LED strips

  • Maximum power capacity 240W (10A x 24V)

  • For use with DALI control system

  • Compatible with DALI and DALI-2
  • Supports IEC 62386-104 over Thread®

  • Can be configured as 4 channel LED, 2 x tunable white or RGBW controller

  • Large pass through terminal blocks for easy wiring

  • Protected against DALI over voltage

  • Converts DALI ECGs and ECDs to a wireless system

  • Compliant to IEC 62386-208 and IEC 62386-209 (TC, RGBW)

  • DALI device type 6 and type 8



 Specification

Supply Voltage 12 - 24 Vdc
Control system Wired DALI-2 Wireless IEC62386-104 over Thread
Radio Support IEEE 802.15.4
Frequency band 2.4 GHz
Max radio tx power +8 dBm
DALI line current 2 mA
Output type 10A total   (0-10A per channel)
Output load type LED only
Independent channels 4
Bus unit configurations 4 x DT6,  2 x DT8-TC,  DT8-RGBW
(see bus unit configuration table on datasheet)
Wiring 1-4 mm2     Strip 6-7mm
Operating temperature 0 to 55°C
Material PC
Classification Class II
Mounting Independently mounted control for surface mounting
Ingress protection IP20





Configuration Options

Standalone Wired or Wireless

The Smart LED PWM Dimmer can be used on a standalone DALI-2 network, or a standalone wireless bluetooth network for small configurations and simple systems.



Wired 101 mode

101 mode is enabled after a 101 power supply has been connected to the DALI terminal and the device has not been added to a 104 application controller.


Wireless 104 mode

104 mode is enabled after the device has been added to a 104 application controller such as zc-iot-fc.


Bridge mode 104 + 101 mode (Wireless and Wired)

The same functionality as a the wireless system, however with the ability to connect wired DALI-2 devices to the Smart LED PWM Dimmer and have those DALI-2 devices appear and be programmed on the wireless network.

104 + 101 bridge mode is enabled after the device has been added to a 104 controller and a 101 power supply has been connected to the DALI terminals.
