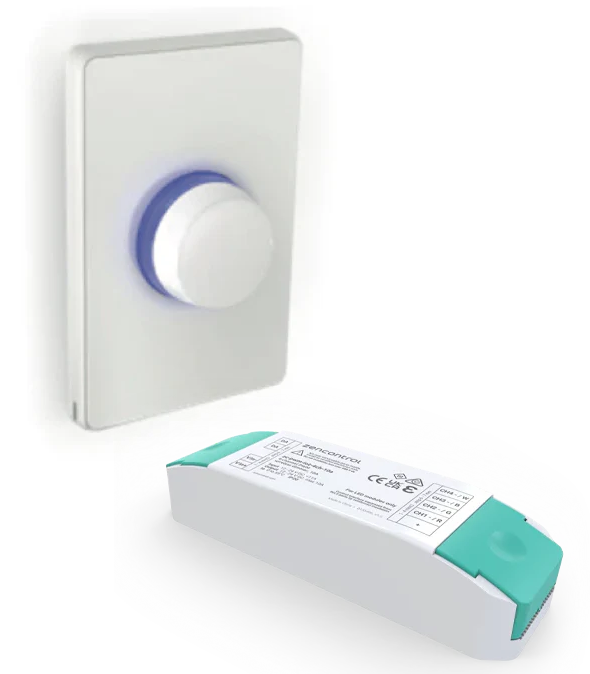

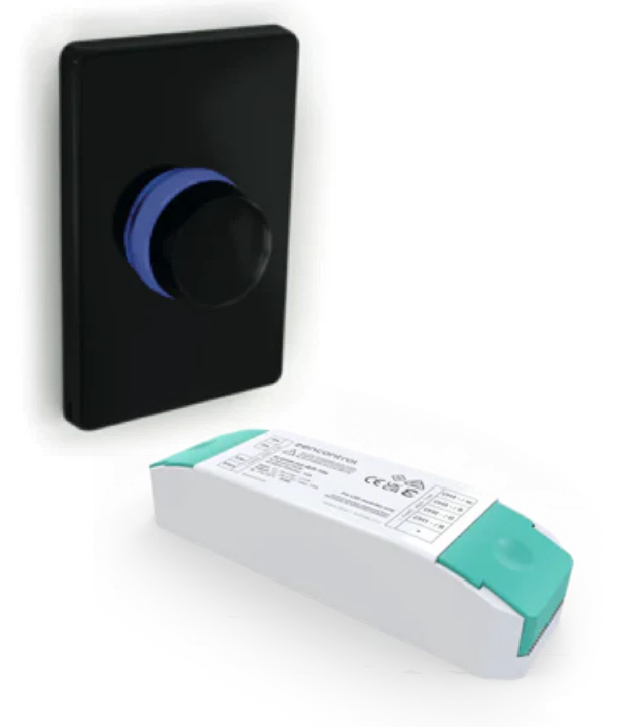

This kit includes one smart rotary switch and one smart PWM dimmer, working together to give you wireless control of 12 V or 24 V DC LED strip lighting.

The rotary switch offers simple, intuitive control:

• Press to turn the lights on or off

• Press and hold to smoothly dim up or down

• Rotate the dial to select your preferred colour (RGBW and Tunable White modes only) or dim up and down (Single Colour mode only)

Designed with retrofit installations in mind, the rotary switch requires only a 240 VAC supply and no additional control wiring, making it quick and easy to install.

Need control from more than one location? Just add additional rotary switches.
Need to run larger LED loads? Simply add more PWM dimmers to increase capacity beyond 10 A.

Note: A suitable DC power supply is required to operate the LED strip and is not included in this kit.

To see our ReadyToGo catalogue, please click here to download

Key Features

• Wireless control between rotary switch and dimmer

• Smooth dimming and colour selection

• Colour-tracking LED indicator on the rotary

• Large rotary control surface for easy operation

• ReadyToGo pre-programming options available (additional fees apply)

• Rotary switch available in black or white

• Completely standalone, no WiFi required

• Communications powered by wireless DALI, ready for future expansion

Technical Specifications

Electrical

• Rotary supply voltage: 240 VAC

• Dimmer output voltage: 12–24 V DC

• Maximum load: 10 A per PWM dimmer

• LED types supported: Single colour, Tunable White, RGB

System & Control

• Wireless linking between devices

• Supports multiple rotary switches per dimmer

• Expandable by adding additional PWM dimmers

Other

• DC power supply: Not included

• Intended use: Indoor
