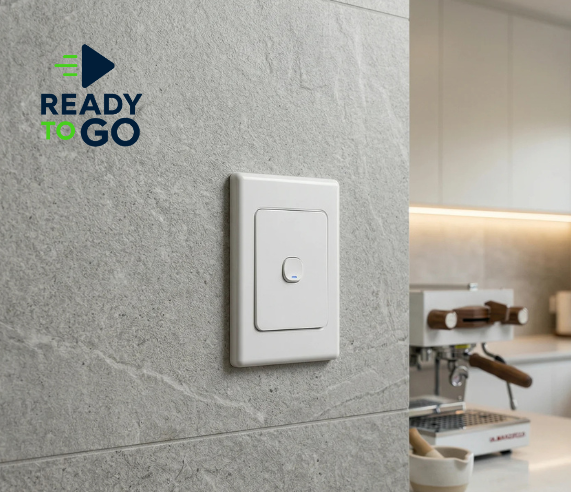

ReadyToGo - DALI Broadcast 30 Mech Push Button Switch Plug and Play Field Kit
$166.26 ex-GST
Order code: lr-dali-kit-switch
Ready To Go for your project. Introducing the DALI Broadcast 30 Mech Push Button Switch Plug and Play Field Kit. Combine the simplicity and ease of use of a traditional light switch with the advanced functionality of a DALI control system.
The intuitive push-button switch puts control at your fingertips > hold to dim or press to turn the lights on and off.
With the broadcast kit, no programming is needed to control DALI lights. Simply wire the kit, and you’re ready to manage up to 30 DALI lights with zero commissioning required.
The kit includes:
- A DALI-illuminated push-button switch set to broadcast,
- A standalone DALI power supply, and
- A field-mount casing for 240V-safe in-wall installation.
| Also available with rotary dimmer: |
 |
Features
- Illuminated pushbutton interface
- Compatible with standard switch-plates
- Everything required for a safe, compliant, out of the box DALI broadcast control system
- No DALI addressing or programming required
- Press the switch for on/off, press and hold for dimming brightness
- Includes DALI-2 Power supply
- Includes a poly carb field mounting kit for 240V safety
These parts can be used with a DALI control system
| Control System | Stand-alone DALI Broadcast |
| Max Luminaires | Up to 30 DALI luminaires |
| Combine up to four kits for two, three, or four-way switching | |
| Wiring | 0.5 – 0.75 mm² (supplied with 100 mm flylead) |
| Operating Temperature | 0 to 45°C |
| Ingress Protection | IP20 |
| Material | Polycarbonate |
| Field Mount Kit Size | W94 × H19 × D37 mm |
| Intended Use | Indoor |
Dimensions:
All dimensions in millimeters unless otherwise specified:
For more information, download the Datasheet below.
