zencontrol

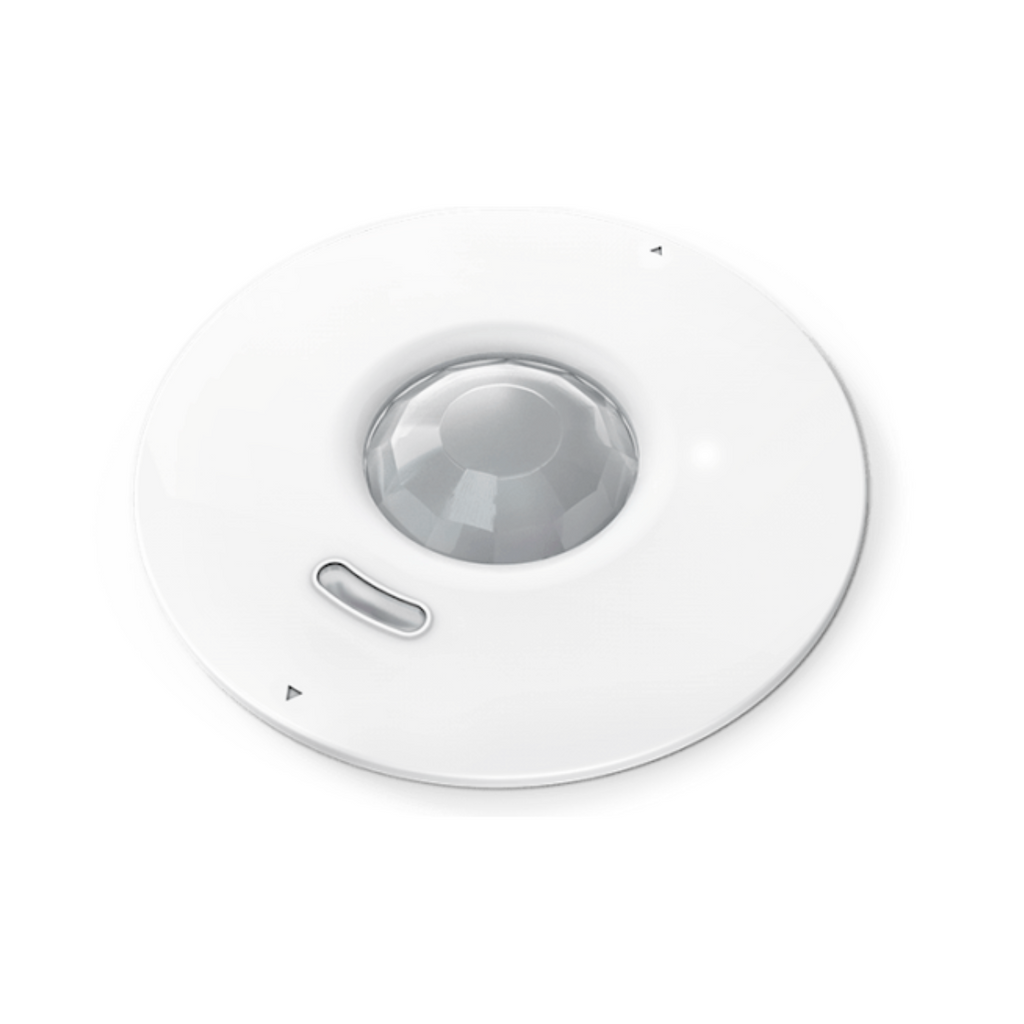

240V Standalone PIR Smart Sensor 8m with Inbuilt Relay and 1 Switch Input

$94.56 ex-GST

99+ units available
Order code: lrr-zc-pir-st-1sw-r

The zencontrol standalone PIR sensor is a versatile motion and light-level sensor designed for efficient and automated lighting control. With an 8-meter detection range, 360° coverage, and compatibility for high ceilings up to 12 meters, it’s perfect for a wide range of applications. Its IP65 weatherproof rating ensures durability in diverse environments.

Easily programmable via an infrared remote, the sensor allows customisation of time-out settings, lux levels, and switch functions. Switch-enabled models offer manual override options for added flexibility.

Compatible with various mounting options, it integrates seamlessly into any space. Ideal for warehouses, offices, or outdoor areas, this sensor delivers energy savings, convenience, and enhanced safety, making it a smart choice for modern lighting control

See the downloadable Datasheet for wiring diagrams.

Features

  • PIR motion sensor
  • Light level measurement
  • Programmable via IR remote
  • IP65 weatherproof rating with mounting accessory
  • Switch inputs for switch models
Programmable features (IR)
  • Sensor time-out
  • Lux level, dusk (if under lux level, activate sensor)
  • Lux level, disable (if over lux level, disable sensor)
Programmable features (switch)
  • Switch type ( on / off, absence)
  • Switch actions (enable / disable sensor, enable / disable lux)

Specifications

Supply 220 – 240 V ~50 Hz
Supply current < 0.1 A
Relay output
(-r models)
120 A / 20 ms inrush current
10 A inductive
6 A resistive
Output voltage rating AC
(-vf models)
10 A resistive
6 A inductive
Output load rating DC
(-vf models)
0 – 25 V 3 A resistive
25 – 240 V 200 mA resistive
Lens Fresnel
Sensors PIR, IR, lux
IR 38 kHz
Wiring 2.5 mm2 cable (no earth, suits round and tps)
Operating temperature 0 to 55°C
Material PC (body)
Ingress protection IP54 (front-face only)
IP65 (with surface or wall mount kit)
Mounting Options

Mounting Kits sold separately, click links below

Smart Sensor Wall Mount Kit

Smart Sensor Surface Mount Kit


Smart Sensor Surface Mount Kit, to be used with smart sensor surface mount kit

Compliance standards IEC 61347-2-11
IEC 60669-2-1
CISPR 15
EN 55015

Detection pattern

Range 8 m (mounted at 2.7 m)
Mounting height 2 – 12 m
