zencontrol

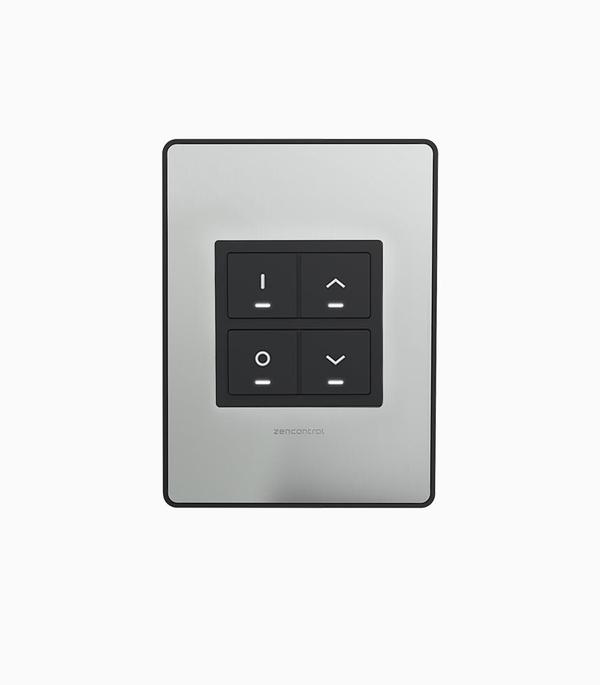

Scene Panel (formerly Sceneset Switch)
Order code: zc-scene-c-a4
C-clip compatible Scene Panel switch to suit 84 mm wall mount.
For further detail on Scene Panel faceplates see: https://shop.lumenresources.com.au/products/scenepanel-faceplates
Features
- DALI-2 certified
- 15 mA DALI line current
- Multiple finishes available
- Up to 10 units per DALI line
- Compliant to IEC 62386-301
- Multiple control devices per line
- Accessories for 1 – 4 buttons per plate
- Customisable labels available for specific projects
- For use with DALI 2 compliant application controller
- Control scenes / groups / actions / events with a zencontrol control system
Specifications |
|
| Supply | DALI |
|---|---|
| Control system | DALI-2 |
| DALI line current | 15 mA |
| Wiring | 0.5 – 0.75 mm2 Strip 6 – 7 mm |
| Operating temperature | 0 to 45°C |
| Material | PC UV stabilised, ABS, 316 stainless |
| Ingress protection | IP20 |
| Available finishes | Faceplates |
| Compliance standards | IEC 61347-2-11 CISPR 15 IEC 62386-301 EMC-2004/108/EC LVD-2006/95/EC |
