Smart Switch Touch Six-button Smart Switch DALI-2 Wired and Wireless - Requires Engraving

Request Pricing Access
Order code: zc-sst-6sw-wht
Sign up to Purchase

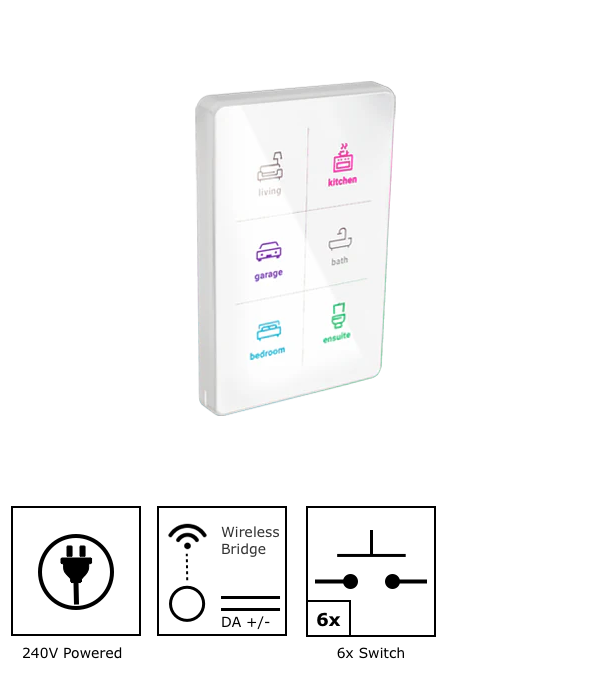

Beautiful and stylish Capacitive Touch with anodised frame and glass faceplate.

Smart switch with 6 DALI-2 programmable back lit buttons to suit 84 mm wall mount.

Supports both DALI-2 wired and wireless applications.

Engraving

When engraving, download and fill out the Lumen Laser Engraving Form, and email it through to support@lumenresources.com.au along with your order number.

Features

  • Audio feedback, an inbuilt speaker provides user feedback

  • Visual and audio warn indicators, audio cue or flashing can be configured

  • Available in 2 stylish colours, Matte Black frame with black glass and silver frame with white glass

  • Used on wired and wireless DALI networks

  • Selectable button actions on DALI-2 application controller

  • Inbuilt configurable RGBW LEDs

  • Can work as a stand alone system, wireless mesh models do not require a local control interface

  • In-built temperature sensor that can be monitored through the BACnet and MQTT interface

  • Selectable button actions on DALI-2 application controller



Dimensions

Fixing centres 84 mm
Mounting
Fits on standard C-clip bracket
Dimensions W 75mm / H 117mm / D 34mm


Wiring Notice

  • The DALI line is not SELV. It must be treated like LV mains
    and treated with the same precautions and wiring regulations.

  • This product is not bus powered and requires the 240V Line Neutral supply to be connected

Specifications

Supply 220 - 240V 50Hz
Control system Wired DALI-2 Wireless IEC62386-104 over Thread
Radio support IEEE 802.15.4
Frequency ban 2.4 GHz
Max radio tx power +8 dBm
DALI line current 2mA
Wiring 0.5 - 2.5 mm2     Strip 8 - 9mm
Operating temperature 0 to 55°C
Material PC UV Stabilised, toughened glass, aluminum
Classification Class II
Ingress protection IP20
Compliance Standards

IEC 61347-2-11

CISPR 15

IEC 62386-301

EMC-2004/108/EC

LVD-2006/95/EC



Configuration Options

Standalone Wired or Wireless

The smart switches can be used on a standalone DALI-2 network, or a standalone wireless bluetooth network for small configurations and simple systems. Configure button functionality and status colour via bluetooth smart phone.



Wired 101 mode

The smart switch can be wired to a DALI-2 wired network as a DALI-2 switch. Button functionality and LED status colours are programmed through a central head end.

Enabled after a 101 DALI-2 power supply has been connected to the DALI terminal and the device has not been added to a wireless 104 application controller.


Wireless 104 mode

Similar to wired mode, but without cables. Connect to a wireless application controller and configure button functionality and LED status colours through a central head end.

104 mode is enabled after the device has been added to a 104 application controller such as zc-iot-fc.


Bridge mode 104 + 101 mode (Wireless and Wired)

The same functionality as a the wireless system, however with the ability to connect wired DALI-2 devices to the switch and have those DALI-2 devices appear and be programmed on the wireless network.

104 + 101 bridge mode is enabled after the device has been added to a 104 controller and a 101 power supply has been connected to the DALI terminals.
