zencontrol

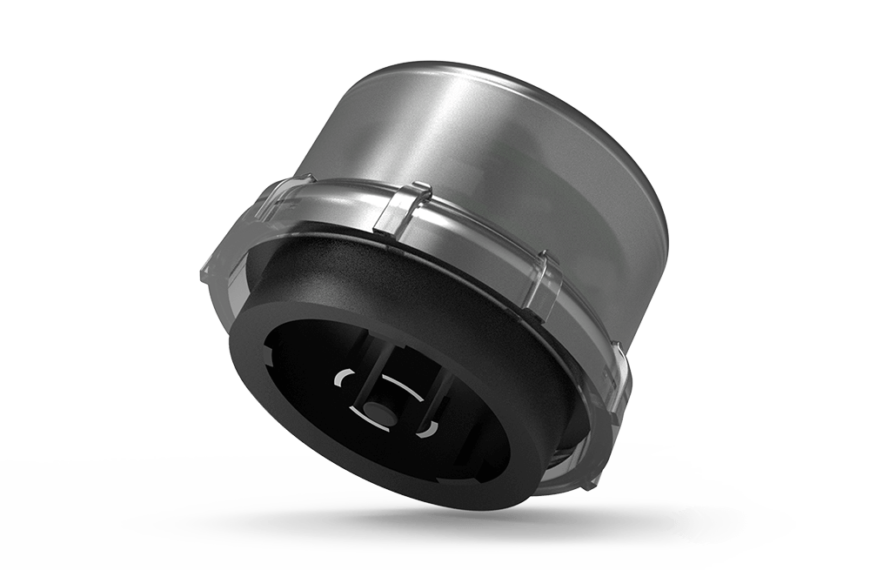

Wireless Zhaga Microwave Sensor
Order code: zc-z10-mw
| Features |
|---|
| Wireless connectivity |
| Microwave motion sensor |
| Light level measurement |
| Wireless support for IEC 62386-104 over Thread® |
| Compatible with Zhaga Book 18 (40 mm) |
| IP66 weatherproof housing for outdoor use |
| Standalone configuration via zencontrol Express |
| Integrated 0-10 V wireless control interface |
| Built-in real-time clock for schedules |
Specifications
| Parameter | Details |
|---|---|
| Supply voltage | 12 – 24 V DC |
| Supply current | < 50 mA |
| Control system | IEC 62386-104 over Thread® |
| Material | PC (Polycarbonate) |
| Classification | Class III |
| Ingress protection | IP66 |
| Mounting | Zhaga Book 18 (40 mm) |
| Operating temperature | −10 °C to +55 °C |

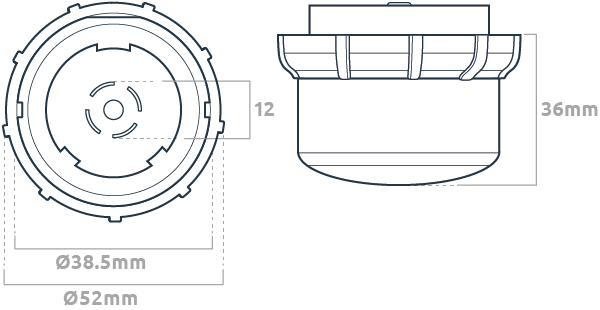

| Dimensions | Ø 52 mm × H 36 mm |
| Compliance standards | IEC 61347-2-11, IEC 60950-1, EN 55015, EN 55022, IEC 62386-103/104, EMC-2004/108/EC, LVD-2006/95/EC |
| Wiring | See the downloadable Datasheet |
Detection Pattern
| Parameter | Details |
|---|---|
| Range | 8 m (mounted at 2.7 m) |
| Mounting height | 2 – 8 m recommended |
