zencontrol

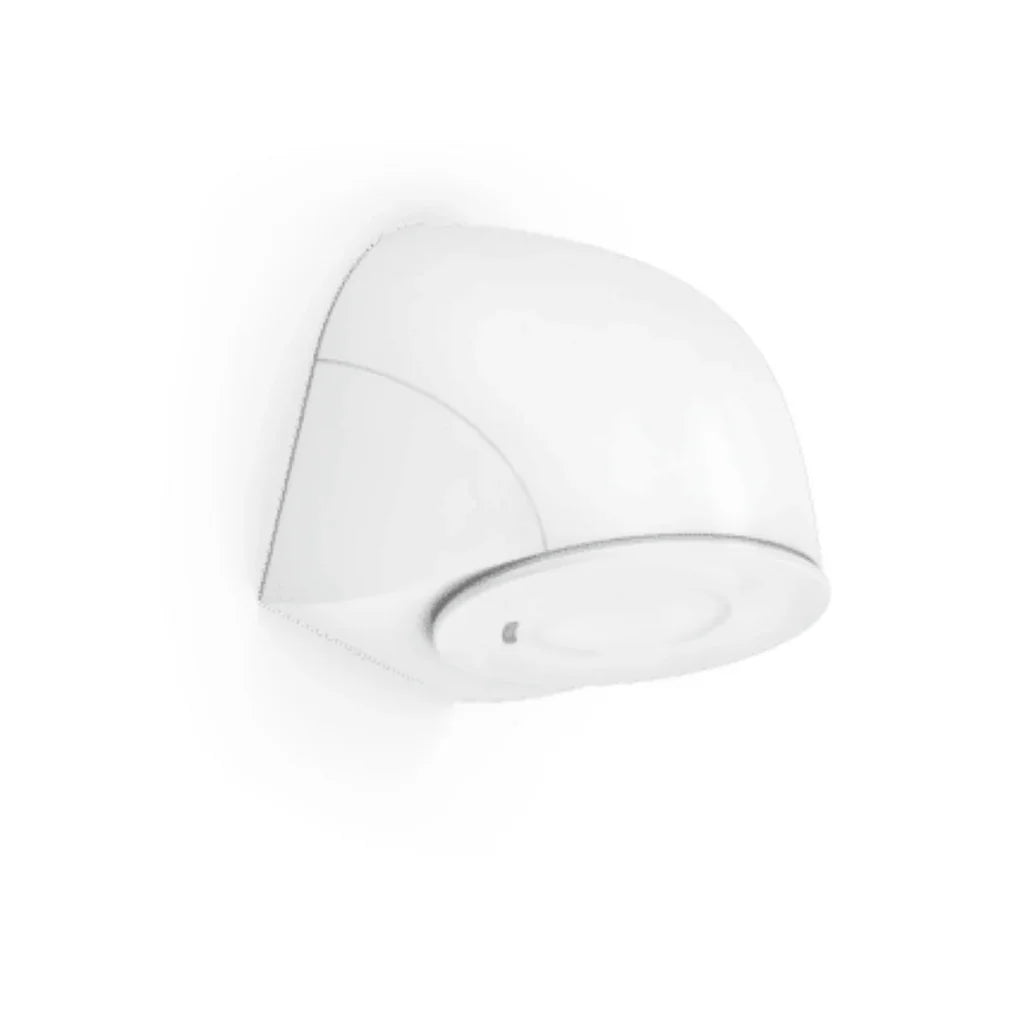

ReadyToGo - Bluetooth Programmable Smart DALI PIR Smart Sensor 8m
$171.84 ex-GST
27 units on hand
(additional stock available at secondary warehouse)
Order code: lrr-zc-pir-iot-da
Ready To Go for your project - Introducing the Bluetooth Programmable Smart DALI PIR Smart Sensor 8m, suitable for detecting movement up to 8m in diameter.
Leveraging the inbuilt 35mA DALI power supply, this sensor can control up to 15 DALI lights without the need of a complete lighting control system. This sensor is configured via bluetooth through the zencontrol connect app, available for android devices.
Using this app, settings such as occupancy timers and behaviours, as well as light level detection settings can be configured suitable to your customer's requirements
Features |
|
Programmable features (Bluetooth)
|
|
|
Specifications |
|
| Supply | 220 – 240 V ~50 Hz |
|---|---|
| Supply current | < 0.1 A |
| DALI bus current | < 2 mA |
| Lens | Fresnel |
| Sensors | PIR, IR, lux (Light Level) |
| Wireless | IEC62386-104 over Thread |
| IR | 38 kHz |
| Wiring | 2.5 mm2 cable (no earth, suits round and TPS) |
| Operating temperature | 0 to 55°C |
| Material | PC (body) |
| Ingress protection | IP54 (front-face only) IP65 (with surface or wall mount kit) |
| Mounting (kits sold separately) |
Recessed (cut-out min Ø80 mm) Wall mount kit (mounting centres 85 mm) Surface mount kit Rod mount kit Conduit mount kit (mounting centres 50 – 60 mm) |
| Compliance standards |
IEC 61347-2-11 IEC 60669-2-1 CISPR 15 EN 55015 IEC 62386-104 IEC 62386-208 IEC 62386-301 IEC 62386-302 IEC 62386-303 IEC 62386-304 |
Detection pattern |
||
| Range | 8 m (mounted at 2.7 m) | |
|---|---|---|
| Mounting height | 2 – 12 m | |
