zencontrol
Retail - DALI-2 Smart Switch Rotary
$279.18 ex-GST
4 units on hand
(additional stock available at secondary warehouse)
Order code: lrr-zc-ss-rot-blk

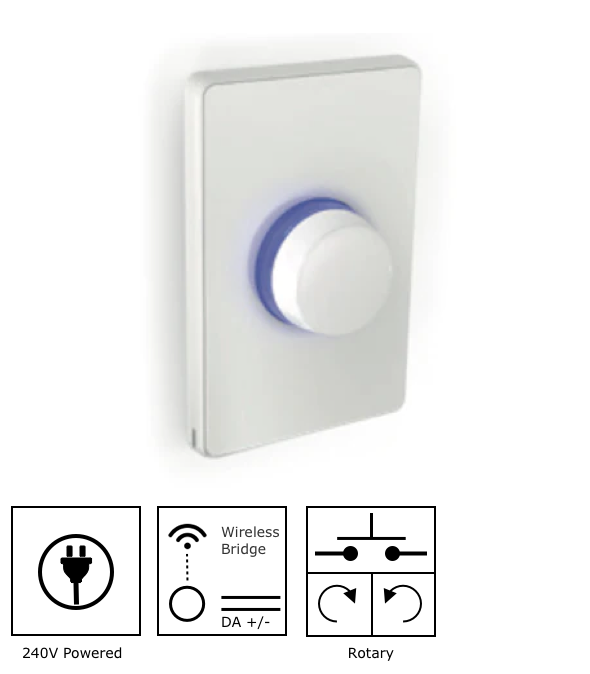

Smart Switch Rotary with programmable RGB illuminated back lighting and in-built temperature sensor.
Supports both DALI-2 wired and wireless applications.
Features
- DALI-2 wired mode with 2 mA DALI line current
- Standalone DALI broadcast or standalone bluetooth wireless
- Wireless bridge to DALI-2 wired mode
-
Up to 64 units per DALI line
-
Black and white finishes available
-
Tactile large knob for user accessibility
- Selectable actions with DALI Application Controller
- Large range of RGB colours to set backlight LED indicator
-
In-built temperature sensor
Dimensions
| Fixing centres | 84 mm |
| Mounting |
Fits on standard C-clip bracket |
| Dimensions | W 75mm / H 117mm / D 34mm |
Specifications
| Supply | 220 - 240V |
| Control system |
IEC62386-104 over Thread / DALI-2 |
| Radio support |
IEEE 802.15.4 |
| Frequency ban |
2.4 GHz |
| Max radio tx power |
+8 dBm |
| DALI line current |
2mA |
| Wiring |
1-4 mm2 Strip 8-10mm |
| Operating temperature |
0 to 55°C |
| Material |
PC UV Stabilised, toughened glass, alumnium |
| Ingree protection |
IP20 |
| Compliance Standards |
IEC 61347-2-11 CISPR 15 IEC 62386-301 EMC-2004/108/EC LVD-2006/95/EC |
Configuration Options
Standalone

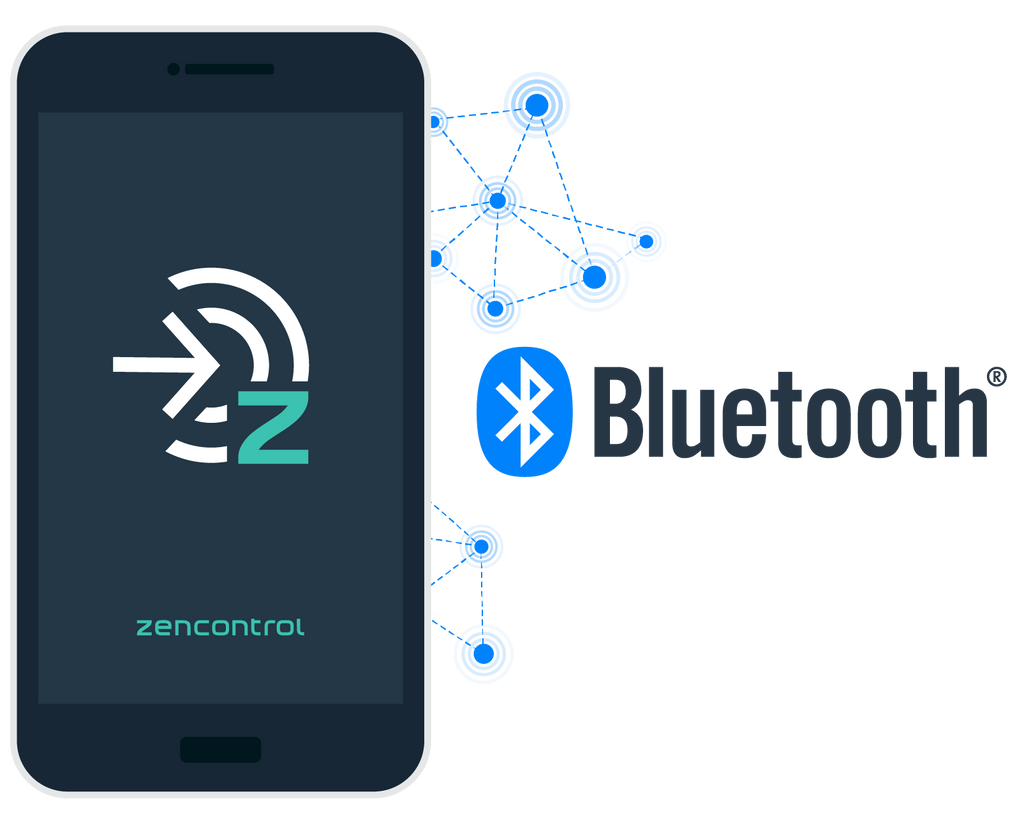

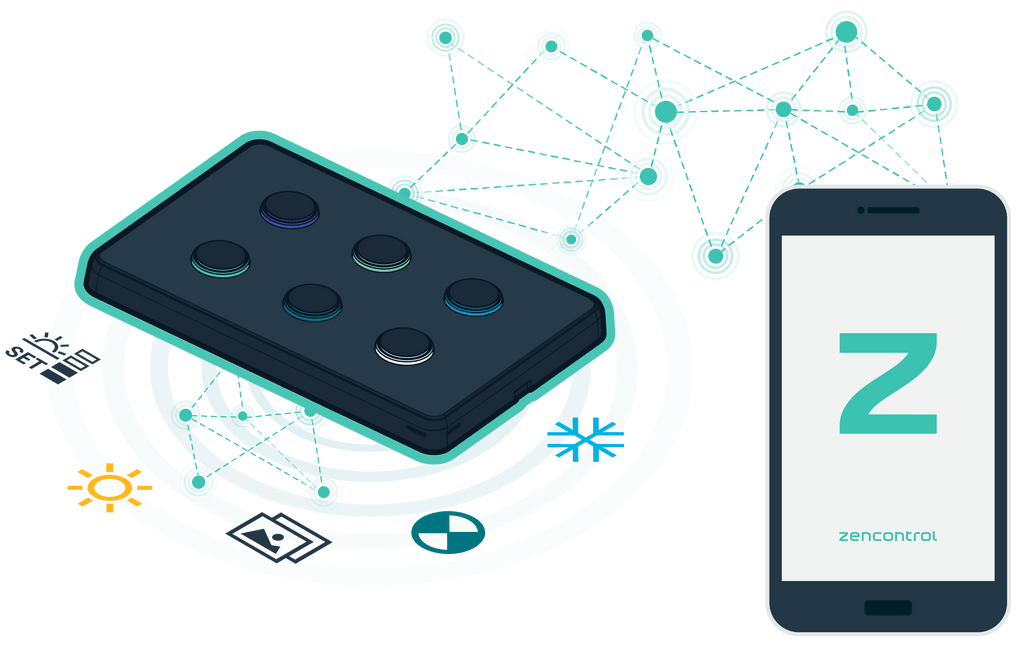

The smart switches can be used on a standalone DALI-2 network, or a standalone wireless bluetooth network for small configurations and simple systems. Configure button functionality and status colour via bluetooth smart phone.
Wired mode
The smart switch can be wired to a DALI-2 wired network as a DALI-2 switch. Button functionality and LED status colours are programmed through a central head end.
Wireless control system as a switch input
Similar to wired mode, but without cables. Connect to a wireless application controller and configure button functionality and LED status colours through a central head end.
Wireless control system as a bridge
The same functionality as a the wireless system, however with the ability to connect wired DALI-2 devices to the switch and have those DALI-2 devices appear and be programmed on the wireless network.
