Teltonika
Teltonika TSW100 4xPoE Network Switch
$190.00 ex-GST
3 units on hand
(additional stock available at secondary warehouse)
Order code: TSW100

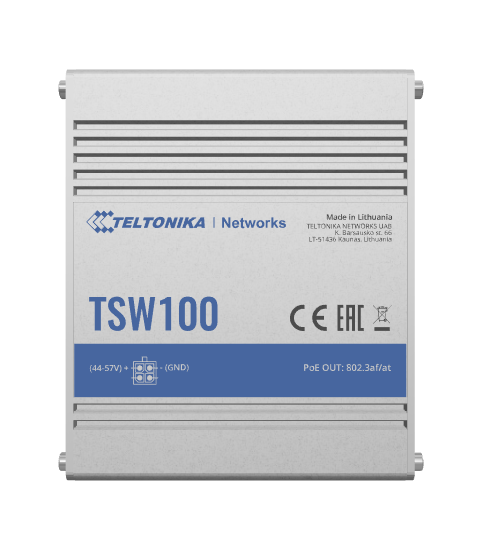

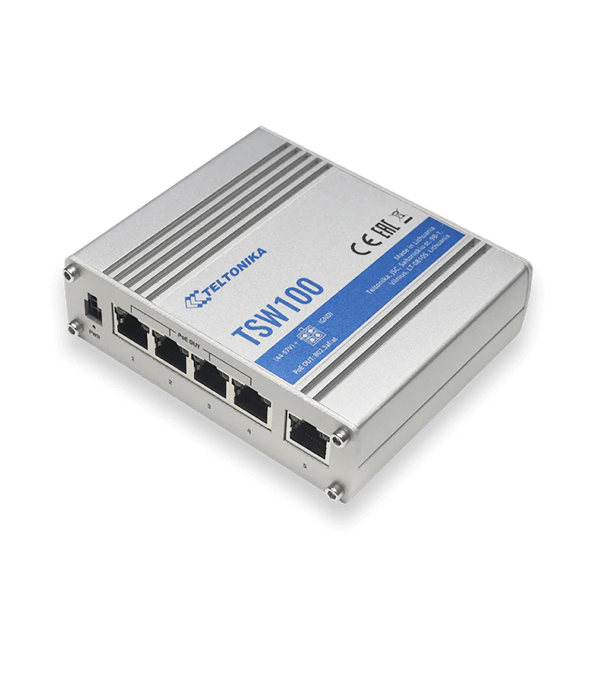

TSW100 is an industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
Hardware
| Power supply | 4 pin power socket, 7-58 VDC |
| Power consumption | Idle: < 2 W, Max: < 9 W (no PoE device connected) |
| PoE standard | 802.3af/at (max 30 W per port, total power budget 120 W) |

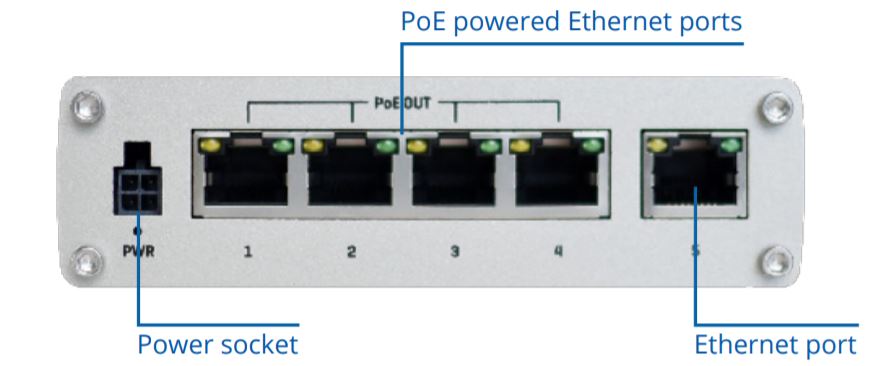

| Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink |
| Connectors | 1 x 4 pin DC, 5 x Ethernet |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing and grounding capability |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 340 g |
| Installation | Desktop, includes wall or DIN Rail mountable mounts |
Performance Specifications
| Bandwidth | Bandwidth 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
