zencontrol

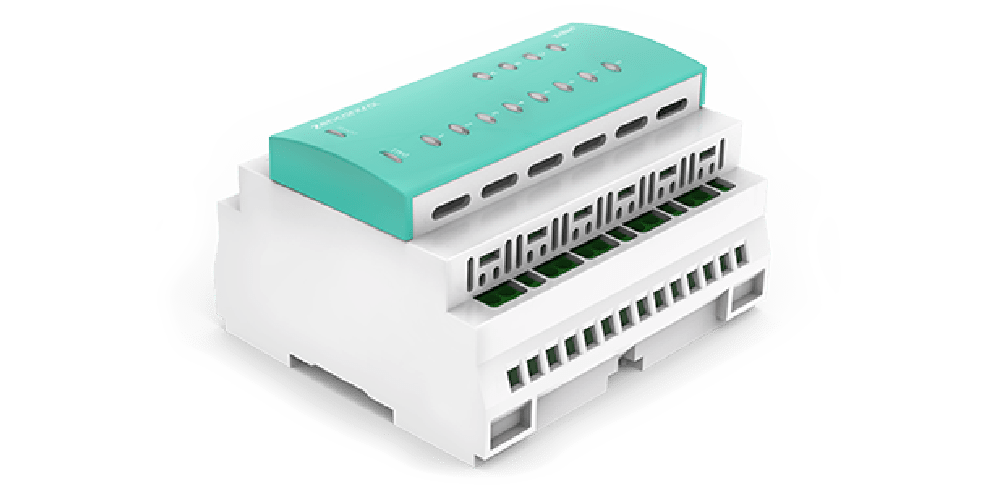

4 Channel DALI Pro Relay Controller
Order code: zc-relay-4-pro
Features
-
4x Relay output SPST, 10A / 165A inrush (20ms)
-
8x 0-10V outputs, 5 mA sink/source per channel
-
Compliant to IEC 62386-208
-
For use with DALI control system
-
Compatible with both wired and wireless (Thread) systems
-
LED indicators for relay status and DALI communication
-
Reinforced insulation between DALI and mains supply
-
Protected against DALI over voltage
-
Suitable for distribution board mounting on standard DIN rail
-
Mains rated dry-contact volt-free relay output
-
Compliant DALI device type 7
-
Compliant DALI device, refer to dali-ag.org
Specifications

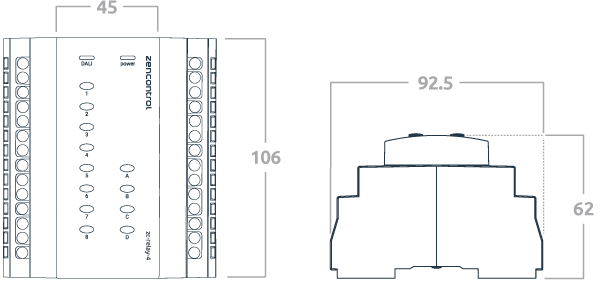

| Parameter | Value |
|---|---|
| Supply voltage | 220–240V ~ 50 Hz |
| Control system | Wired DALI-2 / Wireless IEC62386-104 over Thread |
| DALI line current | 2 mA |
| Output load per channel | 10 A resistive / 6 A inductive |
| Max. inrush (SPST relays) | 165 A (20 ms) / 492 A (1.5 ms) |
| Output type | Dry-contact volt-free relay |
| Relay type | 4x SPST (Normally Open) |
| Output voltage rating | 0–240 V AC |
| Output load DC | 0–25 V 3 A resistive / 25–240 V 200 mA resistive |
| 0-10V output current | 5 mA sink/source per channel |
| Min. relay operations | 12,000 |
| Max. operations per hour | 360 |
| Wiring | 1–4 mm² |
| Strip length | 6–7 mm |
| Operating temperature | 0 to 45°C |
| Operating humidity | 0 to 85% |
| Material | PC |
| Classification | Class II |
| Mounting | DIN rail (35 mm) |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11, IEC 60950-1, CISPR 15, CISPR 22, EN 55015, EN 55022, IEC62386-205, IEC62386-208, IEC62386-301/302/303, EMC-2004/108/EC, LVD-2006/95/EC |
