TCI
DALI-2 Professional Constant Current 300-1050mA LED inline Driver
Order code: 127490
A 240V dip-switch settable constant current DALI-2 driver.
Perfect for converting LED panels and lights, into DALI-2 controllable lights with smooth and non-flickering dimming.
DIP Switch Selectable Options (mA)
| 300 mA | 500 mA | 700 mA | 900 mA |
| 350 mA | 550 mA | 750 mA | 950 mA |
| 400 mA | 600 mA | 800 mA | 1000 mA |
| 450 mA | 650 mA | 850 mA | 1050 mA |
Features
| Dimming | DALI-1, DALI-2 |
| Additional Technical Features | Ripple Free, Active PFC (pf>0.9), SELV, Dimming: Amplitude (AM), IEEE1789-2015 - Dim-to-Warm |
| Approvals | KEMAKEUR, ENEC, RCM, CE, EAC |
| Casing | IP 20 |
| Minimum cut-out | 54 mm |

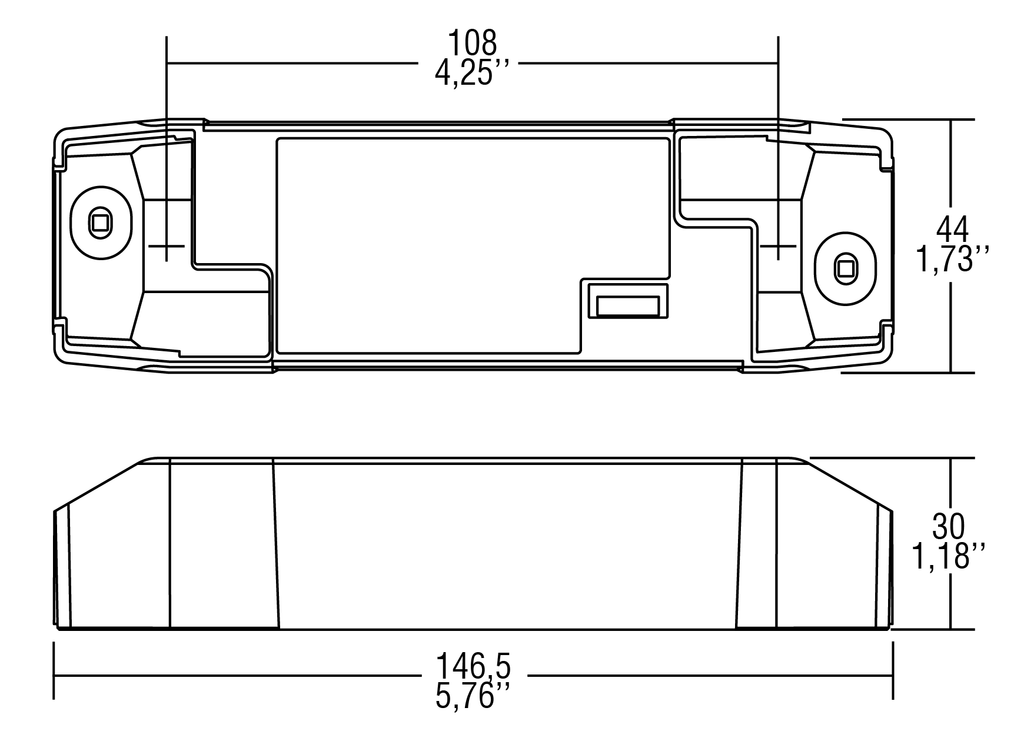

| Size | 146 x 30 x 44 mm |
