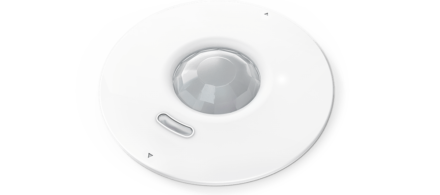

Wireless DALI PIR Smart Sensor 8m

Request Pricing Access
Order code: zc-pir-iot-da
Sign up to Purchase

Downloads

Wireless DALI PIR Smart Sensor 8m Datasheet

Features
  • Wireless connectivity
  • PIR motion sensor
  • Light level measurement
  • Programmable via IR remote
  • Power supply for DALI devices (35mA)
  • Wireless support for IEC62386-104 over Thread
  • IP65 weatherproof rating with mounting accessory
  • Fully compatible with other DALI-2 application controllers
Programmable features (IR)
  • Sensor time-out
  • Corridor mode
  • Daylight harvesting
  • Lux level, dusk (if under lux level, activate sensor)
  • Lux level, disable (if over lux level, disable sensor)

    Specifications
    Supply 220 – 240 V ~50 Hz
    Supply current < 0.1 A
    DALI bus current < 2 mA
    Lens Fresnel
    Sensors PIR, IR, lux (Light Level)
    Wireless IEC62386-104 over Thread
    IR 38 kHz
    Wiring 2.5 mm2 cable (no earth, suits round and TPS)
    Operating temperature 0 to 55°C
    Material PC (body)
    Ingress protection IP54 (front-face only)
    IP65 (with surface or wall mount kit)
    Mounting
    (kits sold separately)     		Recessed (cut-out min Ø80 mm)
    Wall mount kit (mounting centres 85 mm)
    Surface mount kit
    Rod mount kit
    Conduit mount kit (mounting centres 50 – 60 mm)
    Compliance standards IEC 61347-2-11
    IEC 60669-2-1
    CISPR 15
    EN 55015
    IEC 62386-104
    IEC 62386-208
    IEC 62386-301
    IEC 62386-302
    IEC 62386-303
    IEC 62386-304

    Detection pattern
    Range 8 m (mounted at 2.7 m)
    Mounting height 2 – 12 m
