DALI-2 Application Controller Pro 3 DALI Lines
Order code: zc-controller-pro-3
6 DIN wide, 3 DALI lines, zencontrol DALI 2.0 application controller, for controlling a DALI-2 lighting system with DALI 2.0 sensors and switches.
Features
- 3x DALI application controllers
- Compliant to IEC 62386-103 Ed 2.0
- Support for additional instances and bigger sequences
- Suitable for 3 DALI lines of up to 64 devices, and 63 control devices
- Automatic DALI scanning for device changes
- Automatic DALI short addressing
- 2x Ethernet
- Protected against DALI over-voltage
- LED indicators for system status
- Optional DMX (upgradeable)

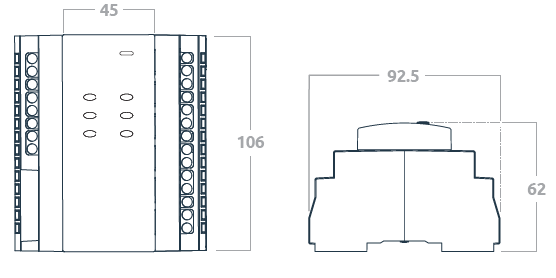

Dimensions (mm)
| Mounting options | DIN rail (35 mm) |
| Dimensions | 92.6 / 106 / 62 mm |
Specifications |
|
| Supply voltage | 230 V ~ 50 Hz |
|---|---|
| Control system | DALI-2 |
| DALI line current | 2 mA / channel |
| Ethernet | 2x 10/100 TCP/IP Ethernet |
| RS-485 network type | 3x Half duplex |
| Wiring | 1-4mm2 Strip 6-7mm |
| Operating temperature | 0 to 55°C |
| Material | PC |
| Classification | Class II |
| Mounting | DIN rail (35mm) |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11 IEC 60950-1 CISPR 15 CISPR 22 EN 55015 EN 55022 IEC 62386-301 Ed 2.0 EMC-2004/108/EC LVD-2006/95/EC |
Accessories range |
|
| Order code | Description |
|---|---|
| zc-psu |
DALI-2 power supply * requires upto 3x external DALI power supply such as zc-psu |
The DALI 2.0 application controllers are ideal for when hundreds or thousands of DALI devices are to be controlled together, for lines of emergency fittings. Multiple application controllers can be networked together to control entire buildings.
One DALI 2.0 application controller is required per DALI line. The DALI 2.0 application controller can be used with DALI 2.0 switches and DALI 2.0 sensors to enables cross DALI line control.
Use the zencontrol DALI 2.0 application controller to connect DALI lighting to BACnet controllers over ethernet.
Commissioning of the DALI lighting system with the zencontrol DALI 2.0 application controller requires an internet connection and the zencontrol Android app.
The zencontrol application controller enables Planview for remote monitoring and set up of installed DALI sites.
