zencontrol

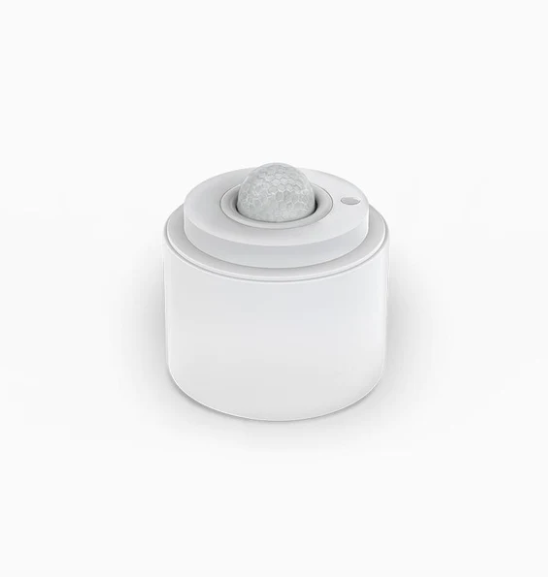

5m DALI-2 PIR with Lux Sensor - Recessed
Order code: zc-pir-5m
5m DALI-2 PIR sensor
Product range |
|
| Order code | Description |
|---|---|
| zc-pir-5m | DALI-2 PIR sensor 5 m |
Features
- DALI-2 certified
- For use with DALI-2 application controller
- Suitable for up to 32 devices per DALI line
- 5 m suitable for high ceilings(2.7 m) and warehouses
- Light control based on ambient light and motion detection
- Multi-master compatible / multiple control devices per line
- Designed for compliance to IEC 62386-303 and 62386-304
- Available as surface & recessed mount, and as a plug-in module
- Control scenes / groups / actions / events with a zencontrol control system
Resources
Dimensions (mm)
Specifications |
|
| Supply | DALI |
|---|---|
| Control system | DALI-2 |
| Supply current | 8 mA |
| Lens | Fresnel |
| Sensors | PIR, ambient light, colour |
| Wiring | Flylead |
| Operating temperature | 0 to 45°C |
| Material | PC (body) |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11 CISPR 15 EN 55015 IEC 62386-303 IEC 62386-304 |
Detection pattern |
||
| Order code | Range ∅ | Height |
|---|---|---|
| zc-pir-5m | 5 m | 2.7 m |

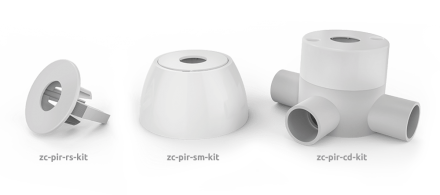

Accessories range |
|
| Order code | Description |
|---|---|
| zc-pir-rs-kit | PIR sensor recessed mount kit |
| zc-pir-cd-kit | PIR sensor conduit mount kit |
| zc-pir-sm-kit | PIR sensor surface mount kit |
