zencontrol
DALI-2 Wired and Wireless Field relay 16A
Order code: zc-smart-relay
-
For use with DALI control system
-
Compatible with DALI and DALI-2
-
Supports IEC 62386-104 over Thread®
- Large pass through terminal blocks for easy wiring
-
Protected against DALI over voltage
-
Mains rated 240v relay output
-

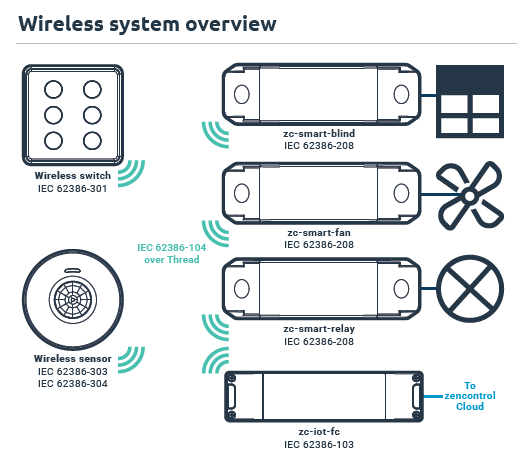

Converts DALI ECGs and ECDs to a wireless system
-
Compliant to IEC 62386-208
-
DALI device type 7
Specification
| Supply Voltage | 240 V ~ 50 Hz |
| Control system | Wired DALI-2 Wireless IEC62386-104 over Thread |
| Radio Support | IEEE 802.15.4 |
| Frequency band | 2.4 GHz |
| Max radio tx power | +8 dBm |
| DALI line current | 2 mA |
| Output load |
16A resistive 8A inductive |
| Output type | Switched Active 240 V~ |
| Max. in-rush |
165 A / 20ms 492 A / 1.5ms |
| Min. rated relay operations | 12 000 |
| Contact rating | 100mΩ max. (at 1A 6V dc) |
| Max. operations per hour | 360 |
| Relay type | Non-latching normally open |

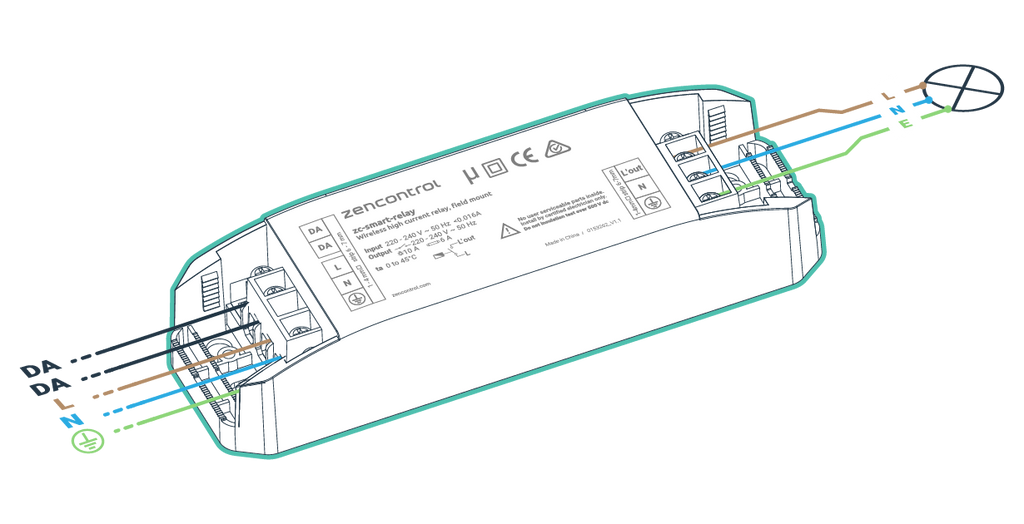

| Wiring |
1-4 mm2 Strip 6-7mm |
| Operating temperature | 0 to 55°C |
| Material | PC |
| Classification | Class II |

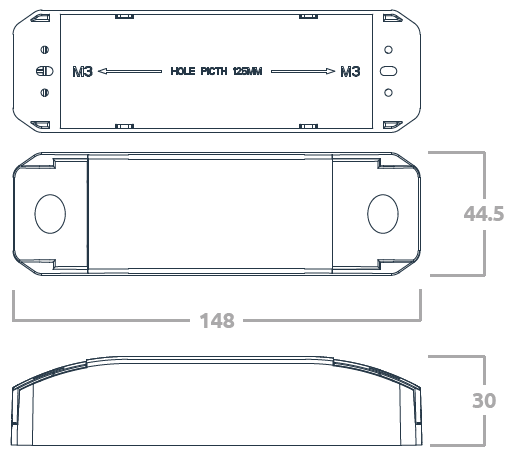

| Mounting | Independently mounted control for surface mounting |
| Ingress protection | IP20 |
| Compliance standards |
IEC 60669-2-1, IEC 60950-1 IEC 62386-104, IEC 62386-208 EN 55015, EN 55022, CISPR 15 |
