DALI-2 Microwave Smart Sensor 8m

Request Pricing Access
Order code: zc-mw-da
Sign up to Purchase

Downloads

DALI-2 Microwave Smart Sensor 8m Datasheet

Features
  • Microwave motion sensor
  • Programmable sensor time-out
  • Programmable via IR remote
  • Control based on ambient light and motion detection
  • IP65 weatherproof rating with mounting accessory
  • Compatible with DALI-2 application controllers
  • Broadcast control of DALI devices with inbuilt application controller
Programmable features (IR)
  • Sensor time-out
  • Corridor mode
  • Daylight harvesting
  • Lux level, dusk (if under lux level, activate sensor)
  • Lux level, disable (if over lux level, disable sensor)
Programmable features (switch)
  • Switch type ( dimmer, on / off, absence, DT8 colour dimmer)
  • Switch actions (enable / disable sensor, enable / disable lux)
  • Switch override time

Specifications
Supply 220 – 240 V ~50 Hz
Supply current < 0.1 A
DALI bus current <2 mA
Relay output
(-r models)

165 A / 20 ms inrush current

492 A / 1.5 ms LED inrush current

10 A inductive / capacitive / resistive
Output voltage rating AC
(-vf models) 		10 A resistive
6 A inductive
Output load rating DC
(-vf models) 		0 – 25 V 3 A resistive
25 – 240 V 200 mA resistive
Sensors Microwave, IR, lux
Microwave
 Microwave, 5.8 GHz, 0.2 mW
Wiring 2.5 mm2 cable (no earth, suits round and tps)
Operating temperature 0 to 55°C
Material PC (body)
Ingress protection IP54 (front-face only)
IP65 (with surface or wall mount kit)
Mounting

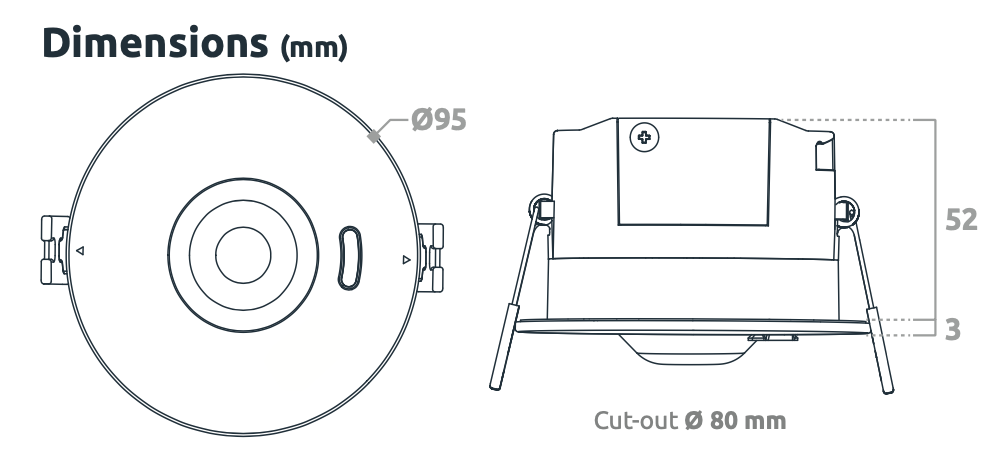

(kits sold separately) 		Recessed (cut-out min Ø83 mm)
Wall mount kit (mounting centres 85 mm)
Surface mount kit
Rod mount kit
Conduit mount kit (mounting centres 50 – 60 mm)
Compliance standards

IEC 61347-2-11
IEC 60669-2-1
CISPR 15
EN 55015

IEC 62386-208

IEC 62386-301

IEC 62386-302

IEC 62386-303

IEC 62386-304

Detection pattern
Range 8 m (mounted at 2.7 m)
Mounting height 2 – 12 m
